The only machine in the world capable of producing two different types of fence knots.

The patented UMC Fence Lokk Machine can produce Fixed Lokk or Stay Lokk type fence knots on one Machine with minimal downtime when changing between fence types.

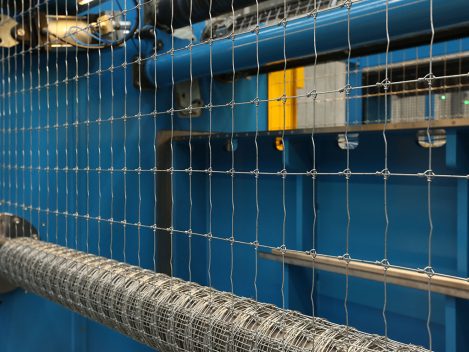

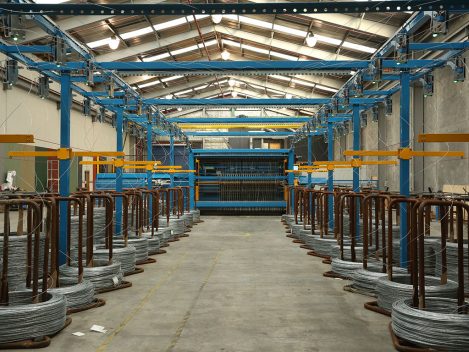

The FLM machine produces fabricated wire fence in various roll sizes and knot types used for numerous applications, producing fencing for livestock and conservation right through to security, and exclusion applications.

There are two machine sizes available; The 6’ foot (1829mm) wide machine can be mechanically or electrically controlled and the 10′ foot (3048mm) wide machine is fully electrically controlled.

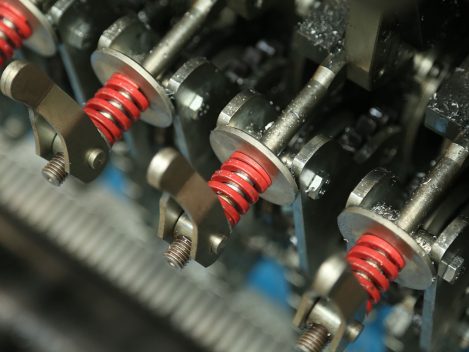

PATENTED FIXED LOKK & STAY LOKK TECHNOLOGY

The FLM machine can be delivered with one set of tooling, for customers who only require one type of fence, or a second set of tooling can be purchased that will allow the machine to produce both types of fence knot.

Press play to watch

PLAY VIDEO

FLM Knot Box Animation

Automatic Cut & Roll Removal

The UMC FLM Machine has the option to automatically cut and remove the roll at the desired length, then start fence production again without operator involvement.

The roll clamp closes on the roll while the mechanism cuts and holds the end of the fence on the machine side. The roll then moves to the tie off area and the holding mechanism reloads the fence onto the mandrel and production starts again.

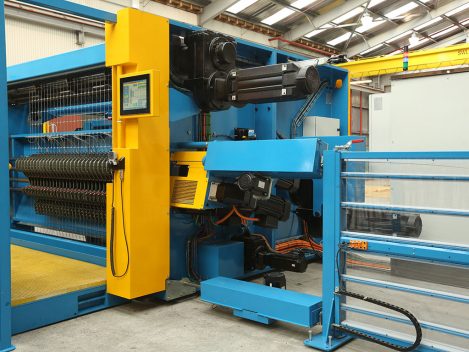

Safety & Controls

The UMC FLM Machine has a high level of machine safety. There is integrated PLC Machine safety with light curtains, laser scanner and magnetic RFDI guard sensing.

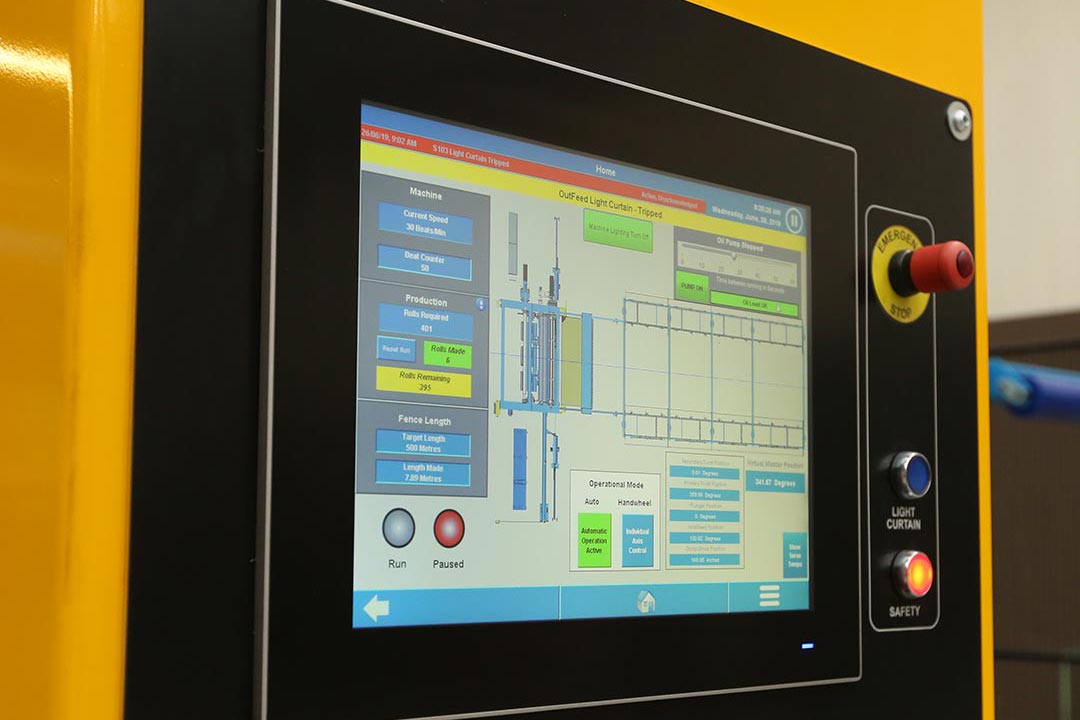

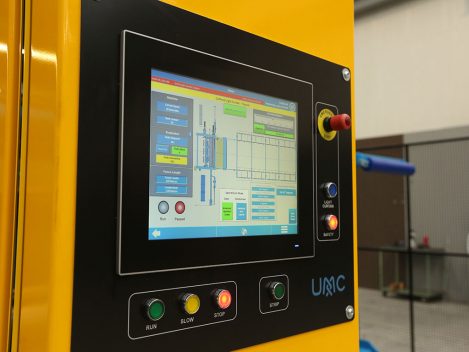

There are front and rear HMI interfaces, with hand wheel adjustments for slow speed operation and individual axis control over the knot tying motion.

Flexible Roll Size

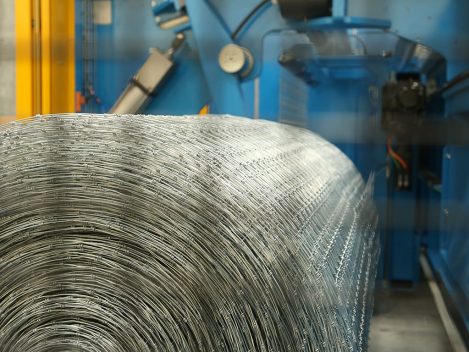

The flexibility of the UMC FLM Machine allows for very large rolls to be produced. Maximum roll diameter 1,300mm (51.2”) Minimum roll diameter 300mm (11.8”) Maximum roll weight 1,500kg (3,300lbs)

The manufacturer can produce a roll of fence with 152mm (6”) stay wire space, up to 500m (1,640’ft) in length. In addition, a special kit can be provided for manufacturers who are wanting to make very short length rolls.

Two Machines In One

The FLM Machine produces Fabricated Wire Fence in various roll sizes and knot types used for numerous applications from Livestock to Security and Exclusion Fencing.

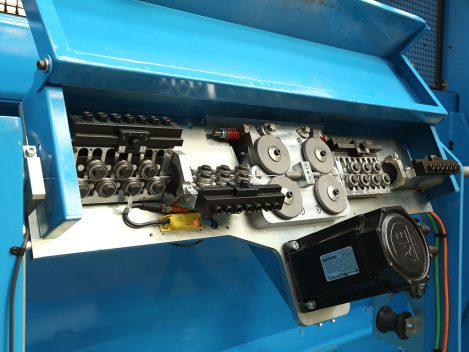

Dual End Wire Feed

Dual end wire feed systems allow for production of two fences at the same time.

Fast Change Overs

Automated Crimp Drum allows for rapid changeovers when specification changes are required.

Roll Shuttle Design

Roll shuttle allows for a controlled motion to layer the fence before the windup. This prevents the knots or line wires from ‘stacking’ on top of each other, keeping the roll diameter compact.

Continuous Production

Finished rolls are automatically removed to the tie-off and pickup zone, allowing for continuous production. When the finished roll ends are secured, the roll clamp re-sets to the windup area.

Statistics & Telemetry

Reporting module provides for Machine displayed operational status including faults, run hours, mechanical history. Mobile device compatible with remote distribution of reports.

Design Offers
Machine Specs
Machine Options
Gallery

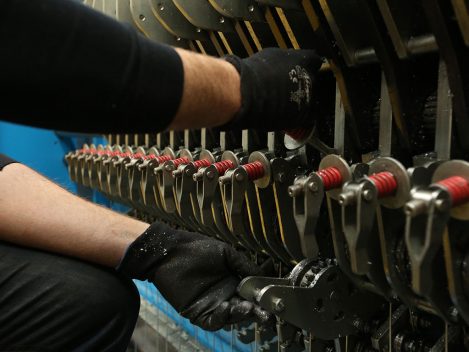

Maintenance

Knot system requires fewer parts and less complexity.
Quick change components for ease of maintenance and rapid replacement of wire contact area components.
Additional height back frame for better coiled wire payoff.
Rockwell AB Automation and hardware used throughout.
Automatic distribution of alerts or remote reports for faults and production data.

Operator

Integrated PLC Machine Safety with light curtains, laser scanner, and magnetic RFID guard sensing.
Lifting operator platform for ease of wire threading.
Individual axis control over knot tying motion.
Machine sits on feet allowing all-round access for cleaning and machine inspections.

Environmental

Machine flexibility means smaller factory footprint, fewer cables, air lines, required to produce two types of fence.
Lower noise dB levels in factory.

Economic

Fixed Lokk production at up to 50bpm (stay wires per minute) is a 25% increase in productivity over other machines.
Long roll length capability; roll size up to 1300mm diameter/1500kg maximum.
Regenerative power convertors supply excess power back into the factory wide grid.
Modular design requires less time to install and commission.

	UMC Fence Lokk Specifications
Machine Model		FLM-10S
Control System		Electrical
Site Power		Voltage: 380 – 480 VAC 3 Phase KW: 150KW Current: 200 - 220 amps
Site Air		Min. 6 bar - 30 ltr/minute
Maximum Fence Height		3048mm (120”)*)
Line Wire Spacings		Minimum 76mm (3”) - Can be increased in increments or multiples of 12.7mm (1/2”)
Line Wire Spacings
Stay Wire Spacings		Minimum 76mm (3”) - Can be increased in increments or multiples of 25mm (1”)
Stay Wire Spacings		Minimum 51mm (2”) - Can be increased in increments or multiples of 25mm (1”)
Line Wire		2.50mm (0.098”)
Line Wire		2.50mm (0.098”)
Stay Wire		2.50mm (0.098”)
Stay Wire		2.50mm (0.098”)
Tie Wire		2.24mm (0.088”)
Tie Wire		2.50mm (0.098”)
Production Speeds Beats Per Minute (Maximum Possible)		50 BPM 3” – 12” spacing (30 BPM 18” & 24” spacing)
Production Speeds Beats Per Minute (Maximum Possible)		80 BPM 2” - 12" spacing (60 BPM 18” & 24" spacing)
Maximum Roll Diameter		1,300mm (51.2”)
Maximum Roll Weight		1,500Kg (3,300lbs)
Maximum combined width for dual fence 2844.8mm (112”) For optimum Stay Lokk strength, Stay wire tensile should be at least 850mpa or higher. Specifications can change upon request.

	Fencelokk Machine Options
Machine Model	FLM-6M	FLM-6S	FLM-10S
Dual Stay Wire Feed			✓
Extended Fence Ends		✓	✓
Automatic Label Inserter		✓	✓
Centre Hinge Twister (Not available in NZ)			✓
Automatic Cut & Reload		✓	✓
Remote Support (local Internet Connection required)		✓	✓
